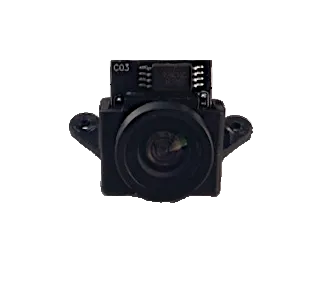

Replacement Camera Module for Zoomie

Specification

• Item: C02 Camera
• Image Sensor: 1/4" CMOS Sensor
• Horizontal: 1200TVL with Global WDR
• Signal System: NTSC
• Lens : 2.1mm(M8) FOV 160°
• S/N Ratio: >50db
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Min. Illumination: 0.01Lux@1.2F
• D-WDR: Auto
• Day/Night: Color
• Power: DC 3-5.5V
• Current: 110mA@5V / 120mA@3.3V
• Housing Material: ABS

• Dimension: 13*11mm
• Net weight: 1.4g
