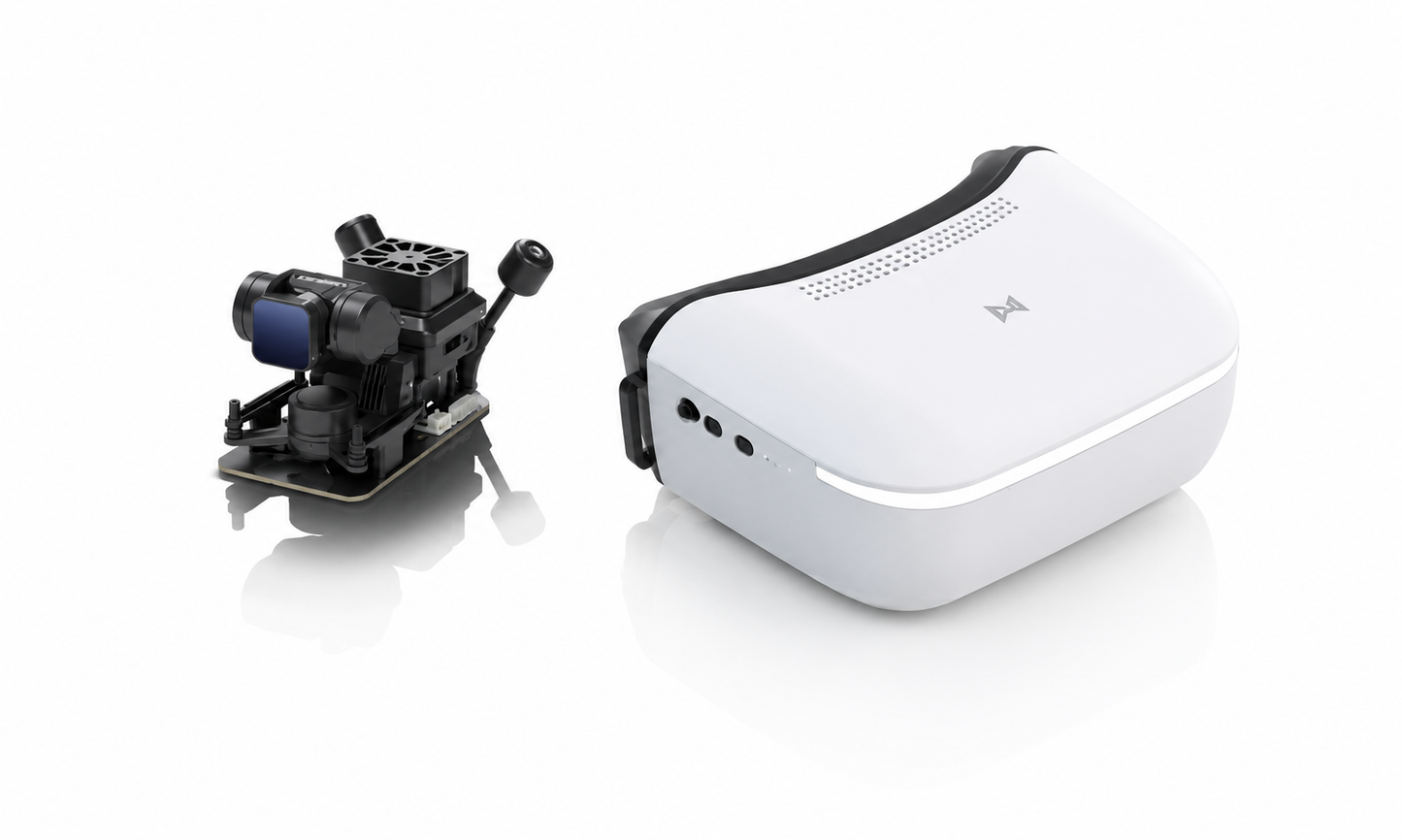

XplorerHD POV 4K

POV 4K advantages

• Ability to record up to 4K/60 FPS and the video is directly saved on an SD card up to 250g (Must use the POV 4K SD card slot, NOT the goggle SD slot!)
• Ability to use ND filters (included) and adjust camera settings. Please see this video: Click Here
• *Recommended* Using Goggle X with the POV 4K as the higher refresh rate (100Hz) and OLED screen will give you a closer resemblance of the higher resolution videos you are recording.
• Please note, the POV 4K camera unit is heavier than the RTR camera unit.

• This is kit is optimized for R/C crawlers and Trainer/High Wing planes. High performance R/C applications NOT recommended. Do not intentionally crash or operate in areas where severe bumps may occur.
• Please be aware of your surroundings as operating behind buildings, rocks, hills, or near radio towers may result in video cut out.
• The POV 4K camera module MAX input voltage is 26v (or 6s LiPo). Not recommended on use on 7v (2s LiPo) vehicles as the battery sag may shut the unit off.
• Please visually check for any damages and if everything is working as intended before each use. DO NOT use if the fans are not operating as this may overheat the unit and activate shut down mode.
• Please check your local lawas for legal FPV use. HAM Amateur license is required for more than 25mW! (U.S)
• This unit is NOT water proof
• Do NOT use with damaged or missing antennas as this may severely damage the unit!

Policy

We will cover all factory defective issues within 30 days of purchase. Support regarding the product is indefinite. Please contact us if you have any issues and we will resolve your issue.

Factory Defect  Process

Please contact us and we will attempt to troubleshoot via email. If defective, we will kindly ask to send us the unit and the initial shipping cost will be paid by the customer. If the unit is defective, we will exchange the product and reimburse the shipping cost. Any misuse, user induced errors, or damages will NOT be covered under our warranty process.

However, we will be more than happy to assist in getting you the correct parts for repairs.

POV 4K

• Camera Size: 19mm
• Image Sensor: 1/1.8" Starlight
• Live Feed Resolution: 1080p/60fps; 720p/100fps; 720p/60fps
• FOV: 160°
• Aperture: F2.1
• Shutter: Rolling
• ISO: 100-25600
• EIS/Gyroflow: Supported
• Recording Resolution: 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
• Max Speed: +/- 1500°/s
• Max Movement RangeYaw: +/- 160°Pitch: +/- 120°Roll: +/- 60°

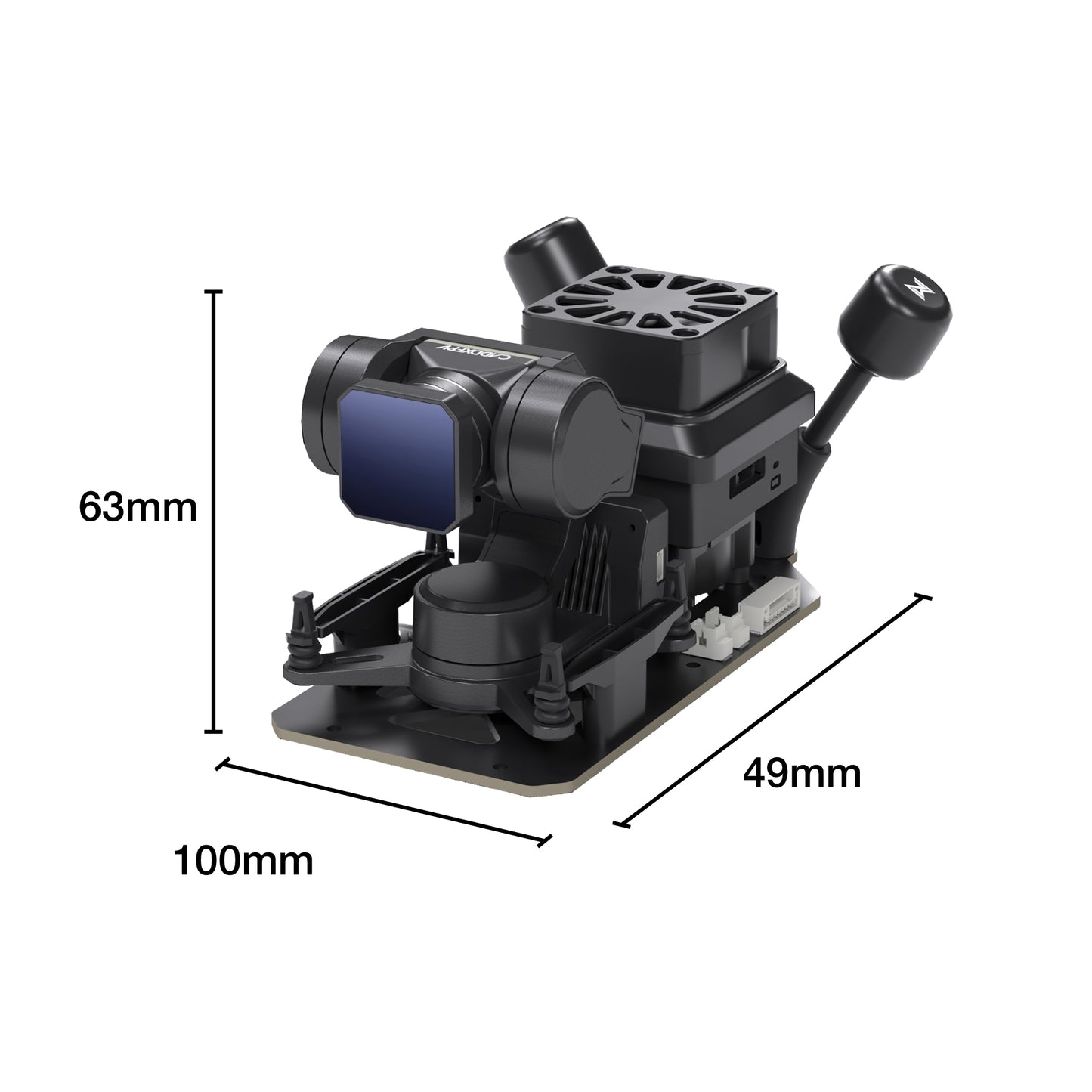

• Size: 1.84x1.82x2.1"
• Weight: 46g*
• Input Voltage: 7-26v (recommend atleast 10v)
• SD Card: up to 256g

• Screen Resolution: 1920x1080/100Hz
• Resolution Options: 1080p 60fps, 720p 60fps, 720p 100fps, 720p 60fps
• Screen: OLED
• FOV: 50
• SD Card: up to 256g
• Power Input: 7-26v
• Antenna: 2dBi average gain (Upgradeable)
• Ports: HDMI IN & OUT  (mini HDMI)
• IPD (eye space): 2.2" to 2.8"
• Focus Adjustment: +2.0 to -6.0 Diopter
