XplorerHD

XplorerHD RTR

Simple goggle headset that will definitely do the job. No adjustments to the screen will allow switching to other users to be more convenient. The range is maximized when the XplorerHD is directly infront of the goggles.  Click here to learn more

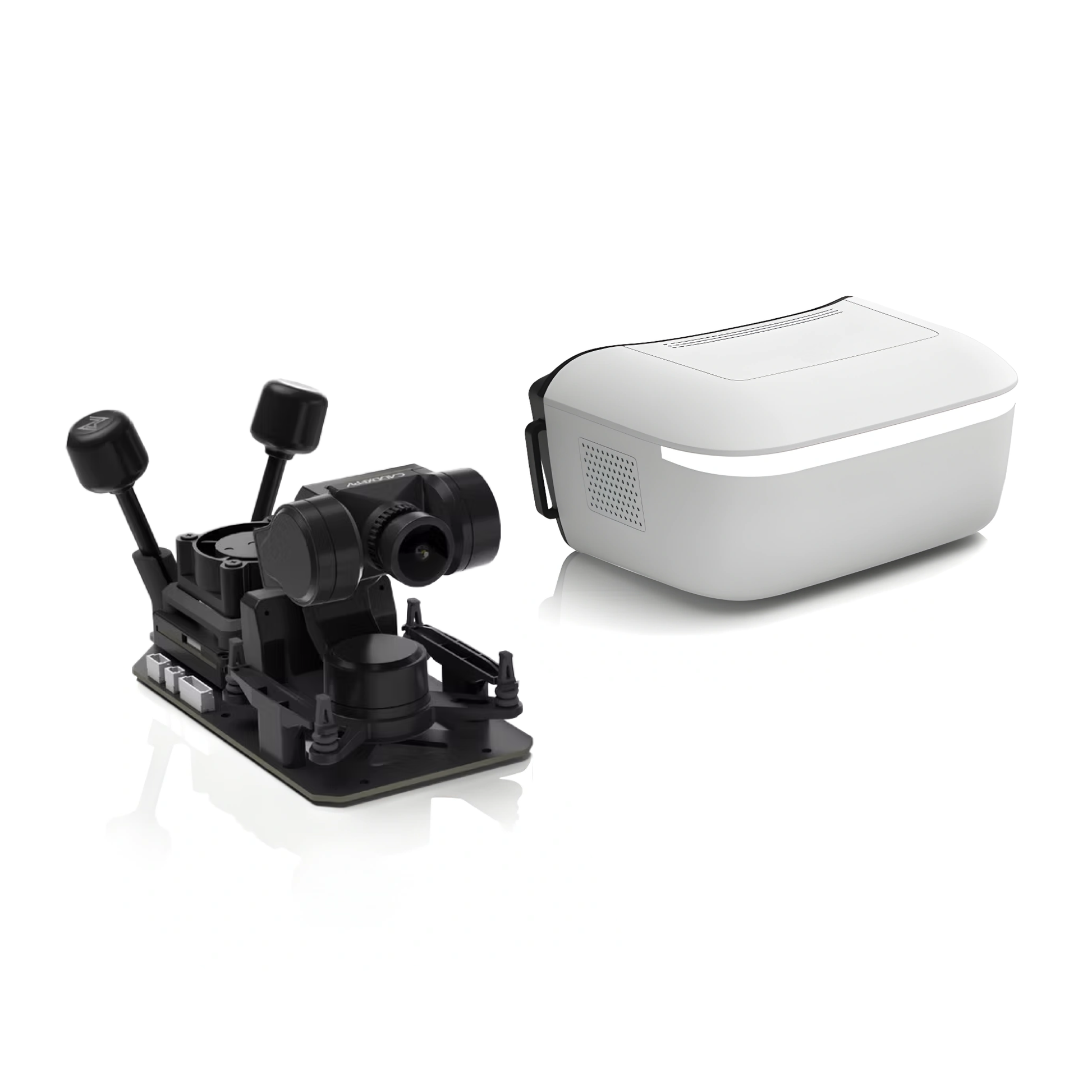

XplorerHD X Bundle

The goggle headset included in this package unlocks a lot of potential. Adjustable IPD, Diopters, and HDMI ports to name a few. The screen is OLED, which you will find with the higher end TV's on the market. The antennas are removeable and upgradeable to accomodiate the style of driving or flying you choose to do. The specs on the IPD and Diopters can be found above under Goggle Specs (XplorerHD X Bundle). HDMI out will allow you to connect to your monitor or TV to share what you seen or can be used with a capture device in your PC to stream.

Camera ONLY option

If you don't want to bother switching your camera unit over to your other R/C's and want dedicated camera systems. The goggles will bind/pair to multiple camera units.

Please note, the Camera ONLY option is intended for customers who have already purchased one of our RTR kits. Walksnail Goggle L & X purchased separately from another dealer may NOT WORK due to software and/or hardware compatibility.

The customer will be responsible if you take this risk.

• This is kit is optimized for R/C crawlers and Trainer/High Wing planes. High performance R/C applications NOT recommended. Do not intentionally crash or operate in areas where severe bumps may occur.
• Please be aware of your surroundings as operating behind buildings, rocks, hills, or near radio towers may result in video cut out.
• XplorerHD camera module MAX input voltage is 26v (or 6s LiPo). Not recommended on use on 7v (2s LiPo) vehicles as the battery sag may shut the unit off.
• Please visually check for any damages and if everything is working as intended before each use. DO NOT use if the fan is not operating as this may overheat the unit and activate shut down mode.
• Please check your local lawas for legal FPV use. HAM Amateur license is required for more than 25mW! (U.S)
• This unit is NOT water proof
• Do NOT use the XplorerHD with damaged or missing antennas as this may severely damage the unit!

Policy

We will cover all factory defective issues within 30 days of purchase. Support regarding the product is indefinite. Please contact us if you have any issues and we will resolve your issue.

Factory Defect  Process

Please contact us and we will attempt to troubleshoot via email. If defective, we will kindly ask to send us the unit and the initial shipping cost will be paid by the customer. If the unit is defective, we will exchange the product and reimburse the shipping cost. Any misuse, user induced errors, or damages will NOT be covered under our warranty process.

However, we will be more than happy to assist in getting you the correct parts for repairs.

XplorerHD

• Unit Size: 100mm Length, 49mm Width, 63mm* Height. (Added height measurement to clear gimbal movement)
• Weight: Approx 102g / 4oz (unit only)
• Camera Size: 19mm
• Image Sensor: 1/1.8in Sony Starvis2 Sensor
• Resolution: 1080p/60fps; 720p/100fps; 720p/60fps
• FOV: 160°
• Aperture: F1
• Minimum Illumination: 0.0001Lux
• Max Speed: +/- 1500°/s
• Max Movement RangeYaw: +/- 160°Pitch: +/- 120°Roll: +/- 60°
• Size: 1.84x1.82x2.1"
• Weight: 46g*
• Input Voltage: 7-26v (recommend atleast 10v)

• Screen Resolution: 1920x1080/60Hz
• Resolution Options: 1080p 60fps, 720p 60fps
• Size: 4.5" LCD
• FOV: 75
• SD Card: up to 256g
• Power Input: 6-25.2v
• Antenna (FIXED): 4.9dBi gain / LHCP Patch

• Screen Resolution: 1920x1080/100Hz
• Resolution Options: 1080p 60fps, 720p 60fps, 720p 100fps, 720p 60fps
• Screen: OLED
• FOV: 50
• SD Card: up to 256g
• Power Input: 7-26v
• Antenna: 2dBi average gain (Upgradeable)
• Ports: HDMI IN & OUT  (mini HDMI)
• IPD (eye space): 2.2" to 2.8"
• Focus Adjustment: +2.0 to -6.0 Diopter
