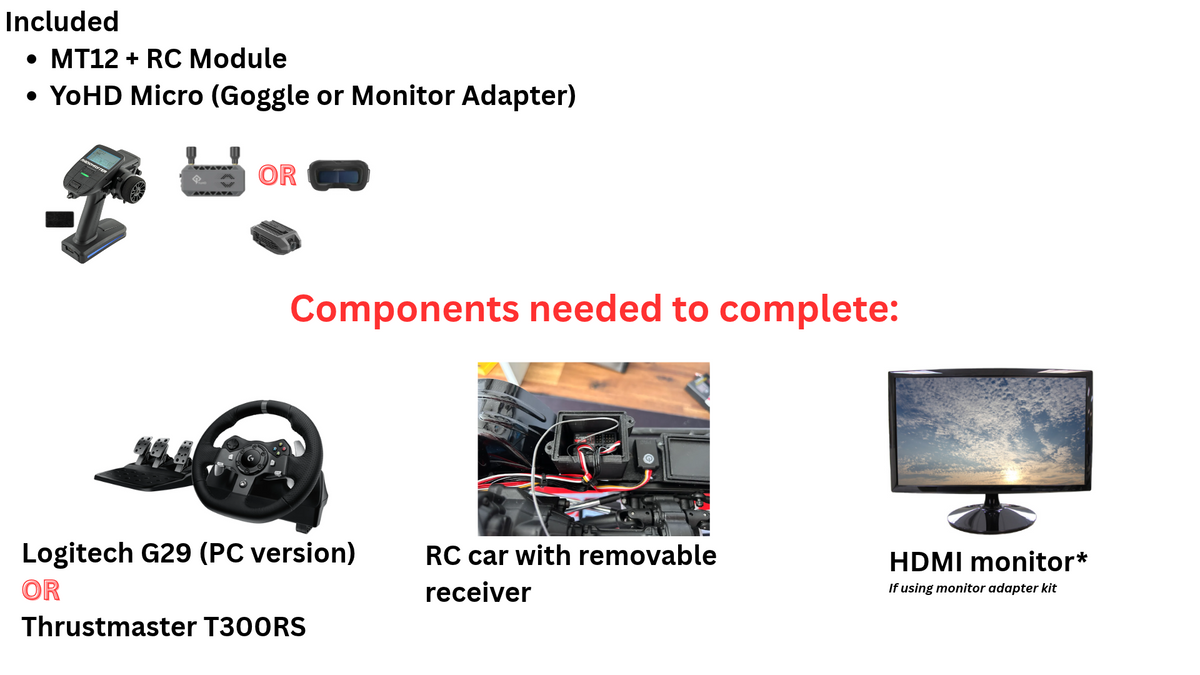

IRONQUAD FPV RC SIM Essential Kit

ONLY the following Steering Wheel/Pedal system will work with our system

• Logitech G29 (PC Version)
• Thrustmaster T300RS (PS3 Version)

Although you may already have a radio transmitter, we specifically chose to include the MT12 as it will 100% work.

• ELRS Receiver
• Trainer port 3.5mm

Monitor Adapter option DOES NOT include a monitor. You will need a monitor with an HDMI IN along with 60hz and 1080p capable.

Both Kits allow for true FPV (First Person View) driving but have their own benefits.

FPV Goggle Kit

• A more immersive experience as the goggles will narrow the focus on the camera view by blocking your peripherals.
• Easier to set up, transport, and store away as you will NOT need an monitor.
• Cons: Glasses (prescription) will not fit.

FPV Monitor Kit

• Extremely similar to traditional gaming SIM as the driving is done using a monitor. *Monitor NOT included*
• Users who have severe motion sickness found the monitor was far better than goggles.
• Cons: Need a monitor to attach the monitor adapter kit (via HDMI).

Policy

We will cover all factory defective issues within 30 days of purchase. Support regarding the product is indefinite. Please contact us if you have any issues and we will resolve your issue.

Disclaimer

Please read the drop down "READ ME!" above. Returns on products that are opened or used, regardless of status, may result in restocking charges. Please make sure the equipment you have are compatible with the RC module provided in this package.

YoHD Micro Camera Specs

• Unit Size: 52.28mm Length, 28.7mm Width, 48.32mm Height (antenna position is down)
• Weight: Approx 30g (unit only)
• Resolution: 1080p/60fps; 720p/60fps
• FOV: 147° 16:9
• Bitrate: 25mbps
• Bandwidth: 5, 10, 20m
• TX Output: 25mW, 100mW
• Input Voltage: 3v to 12.6v (recommend atleast 7v)

Goggle & Monitor Adapter Specs

• Input Voltage: 7-26v (recommend atleast 10v)
• SD Card: up to 256g
