IRONQUAD FPV RC Sim Kit

Both Kits allow for true FPV (First Person View) driving but have their own benefits.

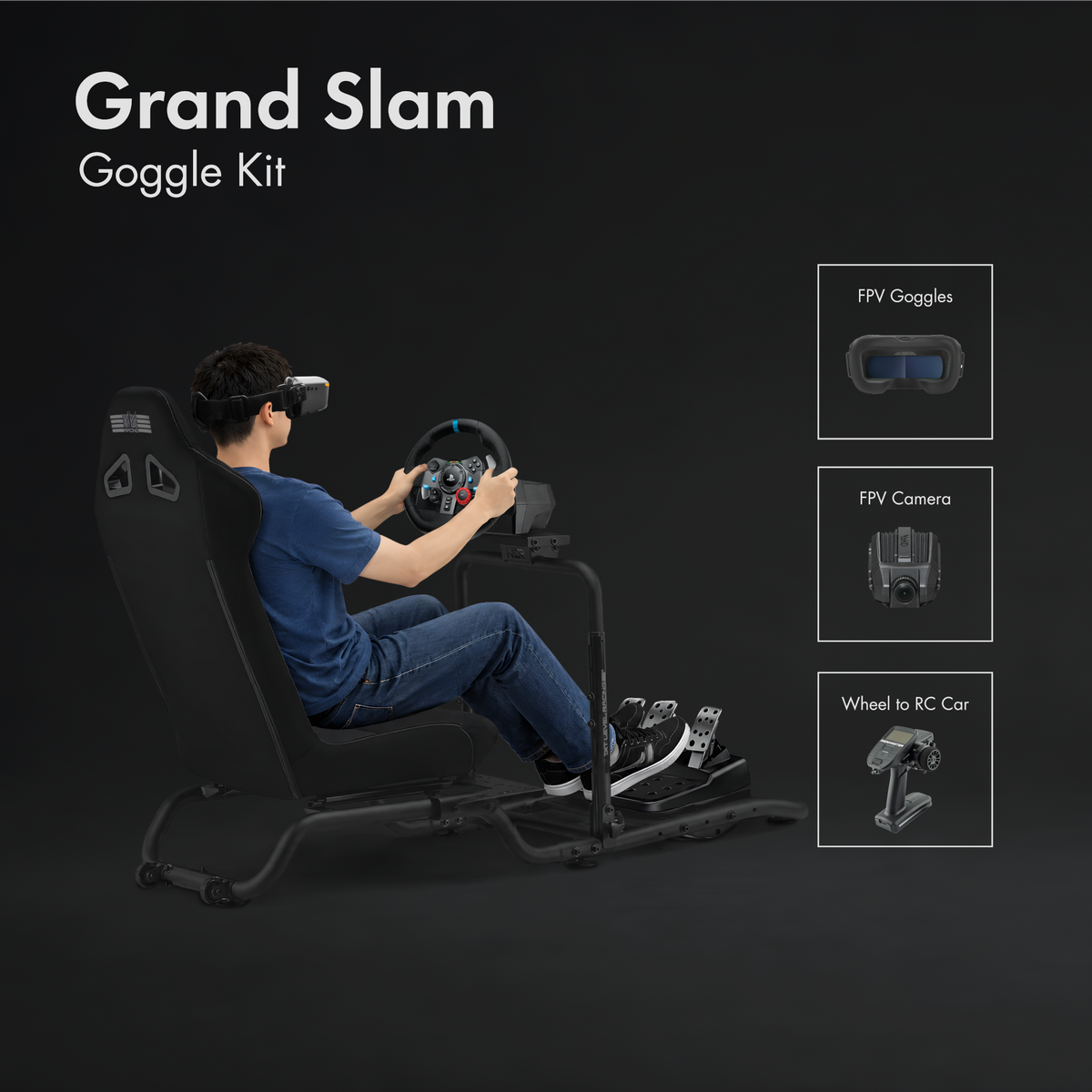

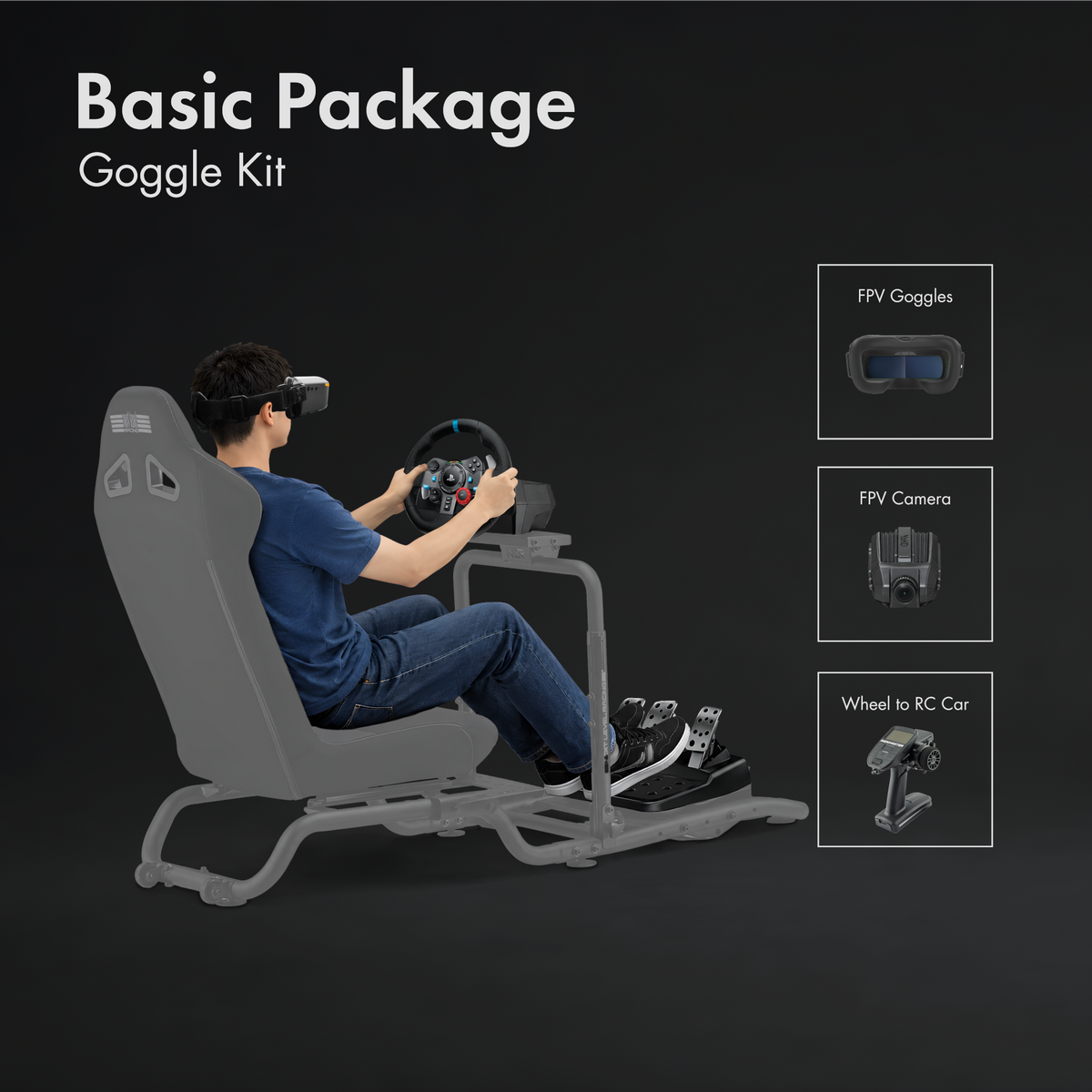

FPV Kit (Goggle Option)

• A more immersive experience as the goggles will narrow the focus on the camera view by blocking your peripherals.
• Easier to set up, transport, and store away as you will NOT need an monitor.
• Cons: Glasses (prescription) will not fit.

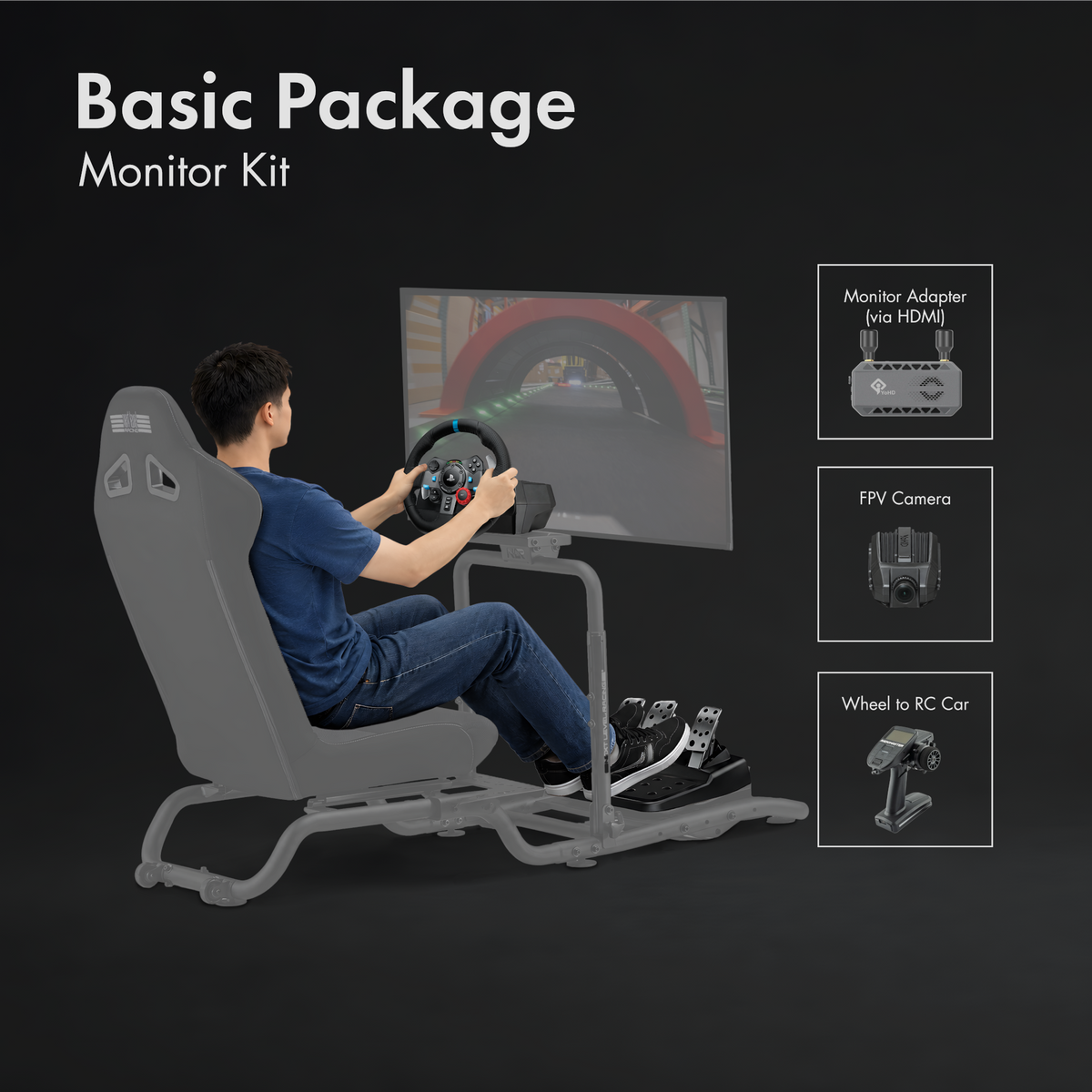

FPV Monitor Kit

• Extremely similar to traditional gaming SIM as the driving is done using a monitor. *Monitor NOT included*
• Users who have severe motion sickness found the monitor was far better than goggles.
• Cons: Need a monitor to attach the monitor adapter kit (via HDMI).

• Will require some assembly and settings adjustments. Step by step guides will be provided on our YouTube Channel (IRONQUAD)
• The Camera and Goggle require external batteries. Here is an article to help: click me. Here is our own battery for the Camera: Camera Batteries
• The POV 4K camera module MAX input voltage is 26v (or 6s LiPo). Not recommended on use on 7v (2s LiPo) vehicles as the battery sag may shut the unit off.

Policy

We will cover all factory defective issues within 30 days of purchase. Support regarding the product is indefinite. Please contact us if you have any issues and we will resolve your issue.

Factory Defect  Process

Please contact us and we will attempt to troubleshoot via email. If defective, we will kindly ask to send us the unit and the initial shipping cost will be paid by the customer. If the unit is defective, we will exchange the product and reimburse the shipping cost. Any misuse, user induced errors, or damages will NOT be covered under our warranty process.

However, we will be more than happy to assist in getting you the correct parts for repairs.

POV 4K

• Camera Size: 19mm
• Image Sensor: 1/1.8" Starlight
• Live Feed Resolution: 1080p/60fps; 720p/100fps; 720p/60fps
• FOV: 160°
• Aperture: F2.1
• Shutter: Rolling
• ISO: 100-25600
• EIS/Gyroflow: Supported
• Recording Resolution: 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
• Max Speed: +/- 1500°/s
• Max Movement RangeYaw: +/- 160°Pitch: +/- 120°Roll: +/- 60°
• Size: 1.84x1.82x2.1"
• Weight: 46g*
• Input Voltage: 7-26v (recommend atleast 10v)
• SD Card: up to 256g

• Screen Resolution: 1920x1080/100Hz
• Resolution Options: 1080p 60fps, 720p 60fps, 720p 100fps, 720p 60fps
• Screen: OLED
• FOV: 50
• SD Card: up to 256g
• Power Input: 7-26v
• Antenna: 2dBi average gain (Upgradeable)
• Ports: HDMI IN & OUT  (mini HDMI)
• IPD (eye space): 2.2" to 2.8"
• Focus Adjustment: +2.0 to -6.0 Diopter
