IRONQUAD

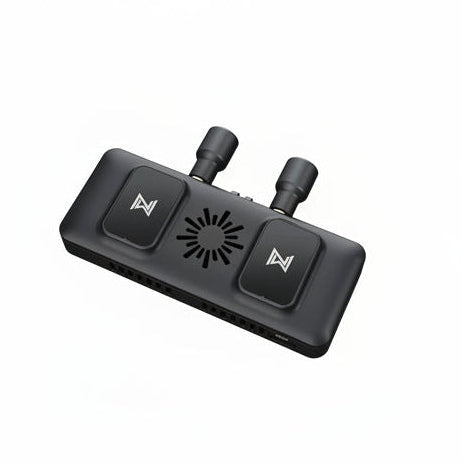

XplorerHD Monitor Adapter
XplorerHD Monitor Adapter
SKU:FPVX1
Regular price
$219.99 USD
Regular price
$219.99 USD
Sale price
$219.99 USD
Quantity
Couldn't load pickup availability
No headtracking module
Compact HD Digital Video Receiver /w HDMI output for the XplorerHD series & Avatar
| Specification | |
| Model | Avatar FPV VRX |
| Communication Frequency | 5.725-5.850GHz |
| TransmitterPower(EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm |
| I/OInterface | HDMI,micro SD card slot, DC5.5*2.1mm |
| HDMI Output | 1080p60fps,720p100fps,720p60fps |
| Power Input | 7-21V(2S-5S) |
| SDCard | Support 256G |
| System | Avatar HD System |
| Model | Red Bird |
| Polarization | LHCP |
| Bandwidth | 5.6GHz- 6.0GHZ |
| Average Gain | 1.9dBi |
| Radiation Efficiency | ≥97% |
| VSWR | ≤1.3 |
| Cross-Polar Rejection | -15to-30dB |
| Connector | RP-SMA |
| Dimension | H24.8mm*R15.3mm |
| Weight | 4.2g |
| Packing List | |
| Avatar FPV VRX | ×1 |
| Red Bird Antenna | ×2 |
| HDMI Cable | ×1 |
| 2in1 DCPower Cable | ×1 |
