XplorerHD Series Harness (for V.2 Sled)

Note The VTX Harness will ONLY work with the V2 sled (attached USB-C port)

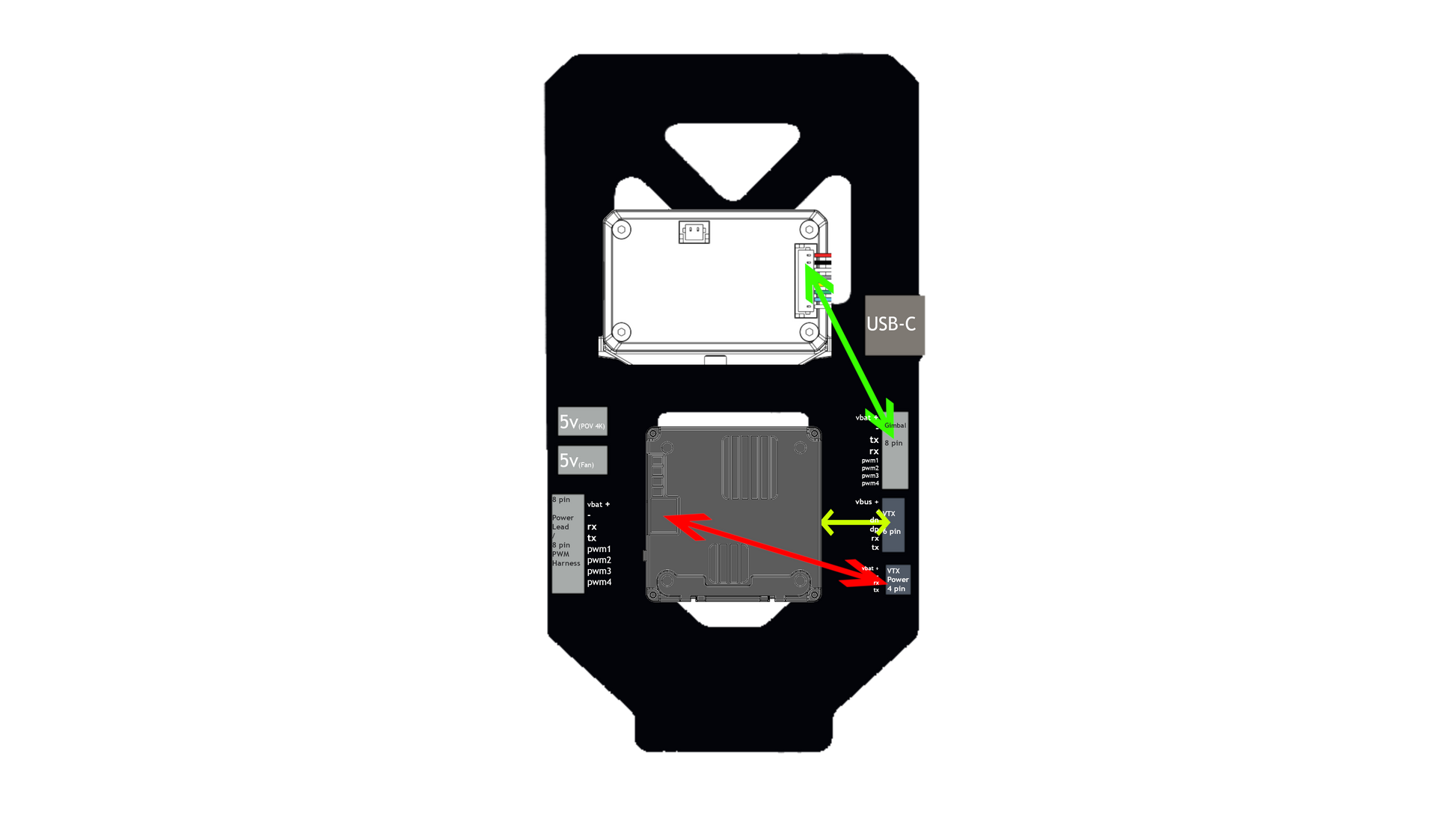

Here are the essential wire harnesses to repair or complete your XplorerHD series camera unit (refer to SLED picture)

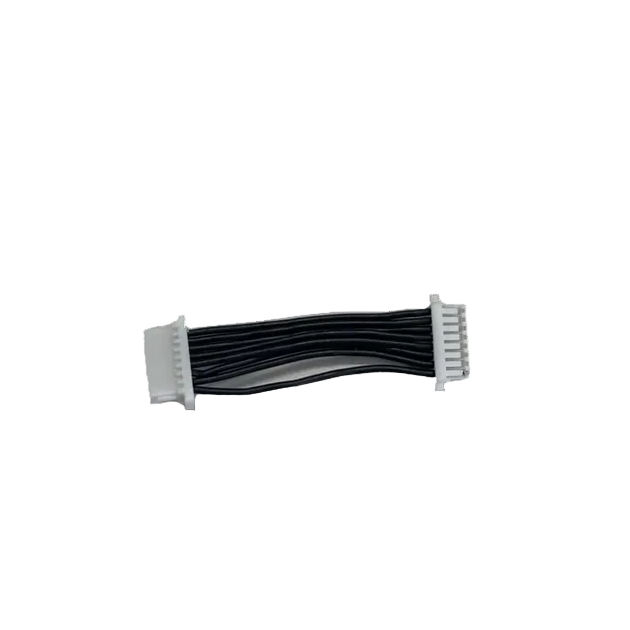

• Gimbal Harness (8-Pin) Sled to Gimbal Assembly (GREEN ARROW)

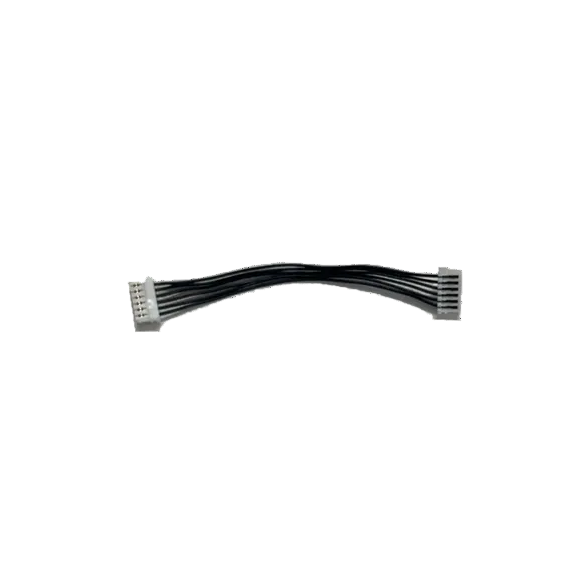

• VTX Harness (6-Pin) Sled to VTX USB & Signal for the Gimbal (YELLOW ARROW)

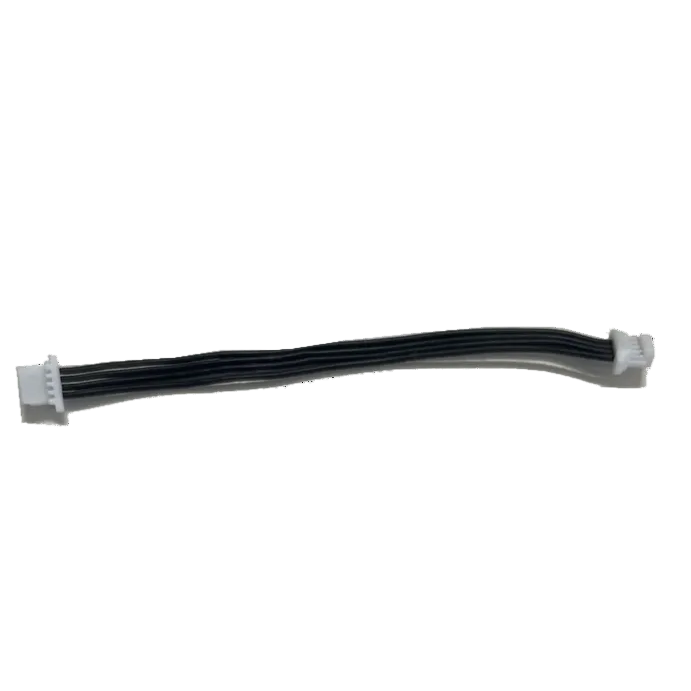

• VTX Power Harness (4-Pin) VTX to Sled (RED ARROW)
