YoHD Micro Goggles built in Head Tracking function

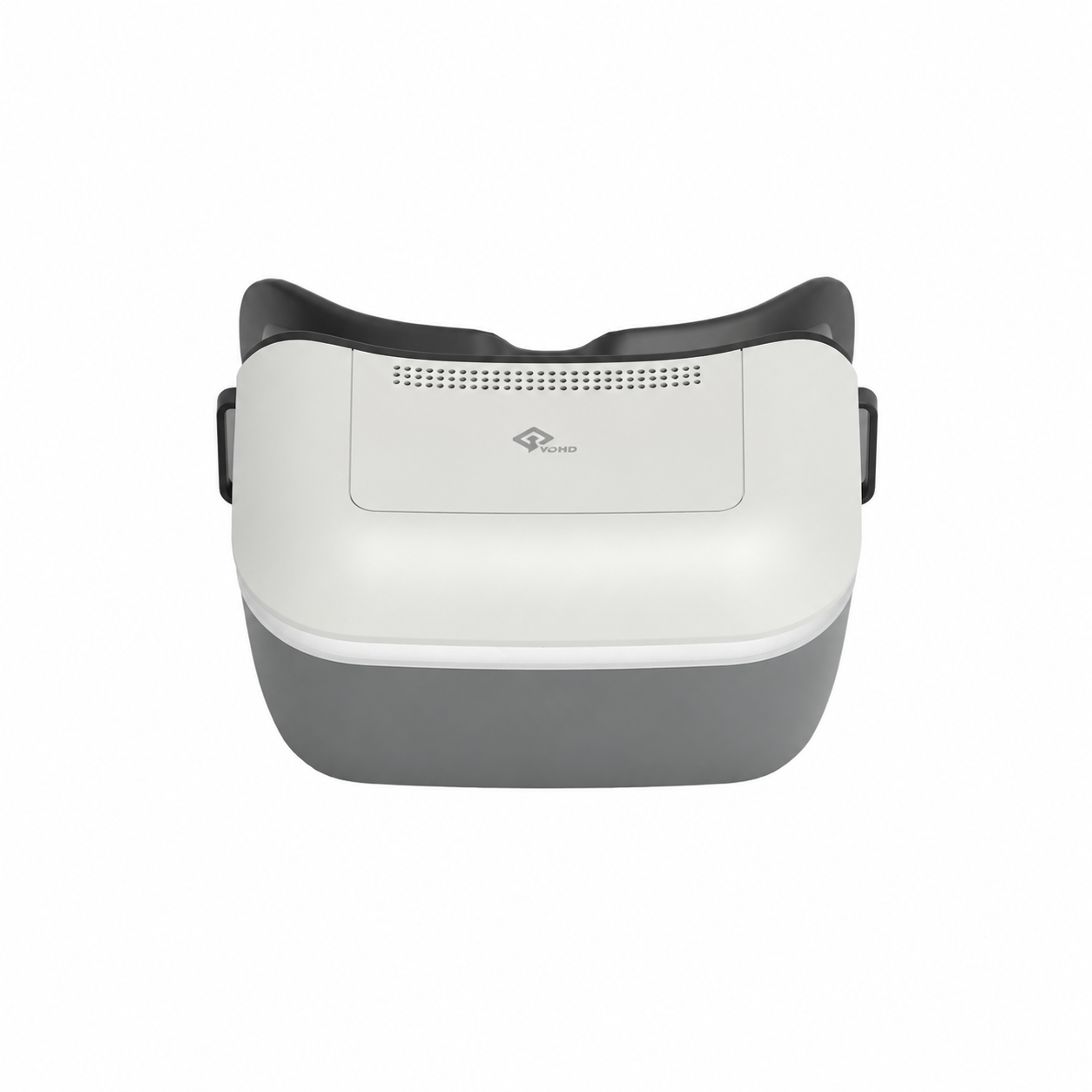

YoHD Micro + Goggle Kit

A truly immersive experience. The goggle will transport your POV to the vehicle's perspective. Also, our variation will come with a head tracking sensor built in for future lineups. *Hint Hint*

YoHD Micro + Receiver

This route removes the need for wearing goggles and allows to connect (via HDMI) to a monitor of your choosing.

Camera ONLY option
Note: The YoHD Micro will ONLY work with our goggle/receivers

If you don't want to bother switching your camera unit over to your other R/C's and want dedicated camera systems. The goggle/receiver will bind/pair to multiple camera units.

Please note, the Camera ONLY option is intended for customers who have already purchased one of our kits. Ascent Goggle or Receiver purchased separately from another dealer may NOT WORK due to software and/or hardware compatibility.

The customer will be responsible if you take this risk.

• This is kit is optimized for close range race track or crawler courses for micro RC's.
• Please be aware of your surroundings as operating behind buildings, rocks, hills, or near radio towers may result in video cut out.
• YoHD camera module MAX input voltage is 11.1 (or 3s LiPo). Not recommended on use on 3.7 (1s LiPo) vehicles as the battery sag may shut the unit off. Highly recommend using 2s batteries for weight and run time.
• Please visually check for any damages and if everything is working as intended before each use. DO NOT use the antenna is disconnected or damaged. (This may result in permanent damage)
• Please check your local laws for legal FPV use. HAM Amateur license is required for more than 25mW! (U.S)
• This unit is NOT water proof

Policy

We will cover all factory defective issues within 15 days of purchase. Support regarding the product is indefinite. Please contact us if you have any issues and we will resolve your issue.

Factory Defect  Process

Please contact us and we will attempt to troubleshoot via email. If defective, we will kindly ask to send us the unit and the initial shipping cost will be paid by the customer. If the unit is defective, we will exchange the product and reimburse the shipping cost. Any misuse, user induced errors, or damages will NOT be covered under our warranty process.

However, we will be more than happy to assist in getting you the correct parts for repairs.

YoHD Micro

• Unit Size: 52.28mm Length, 28.7mm Width, 48.32mm Height (antenna position is down)
• Weight: Approx 30g (unit only)
• Resolution: 1080p/60fps; 720p/60fps
• FOV: 147° 16:9
• Bitrate: 25mbps
• Bandwidth: 5, 10, 20m
• TX Output: 25mW, 100mW
• Input Voltage: 3v to 12.6v (recommend atleast 7v)

• Screen Resolution: 1920x1080/60Hz
• Resolution Options: 1080p 60fps, 720p 60fps
• Size: 4.5" LCD
• FOV: 75
• SD Card: up to 256g
• Power Input: 6-25.2v
• Antenna (FIXED): 4.9dBi gain / LHCP Patch
